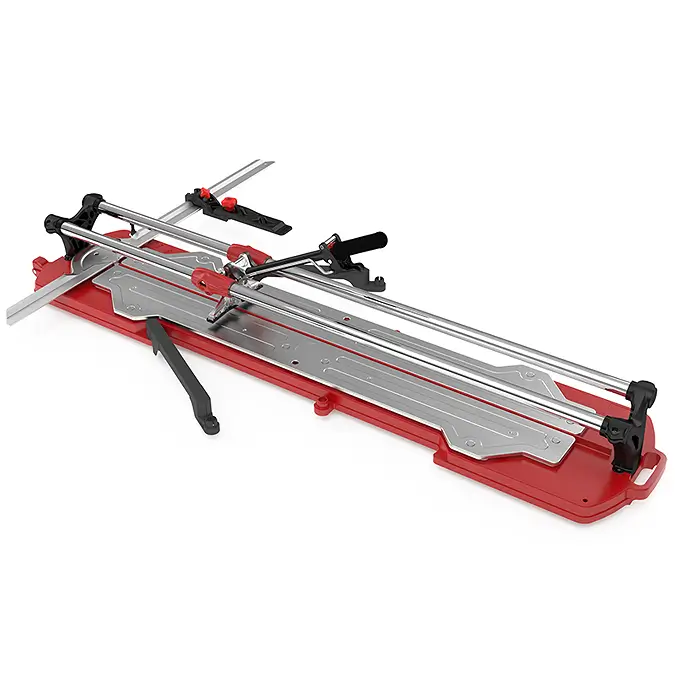

Rubi Tx 1250 Max Manual Tile Cutter 1200mm

Rubi Tx 1250 Max Manual Tile Cutter 1200mm

Rubi Tx 1250 Max Manual Tile Cutter 1200mm is a professional-grade manual tile cutter designed for intensive and high-precision cutting of ceramic, porcelain, and extruded tiles. Engineered for demanding applications, this model delivers exceptional cutting accuracy and durability, making it ideal for professional tile installers working with large-format materials.

With a cutting capacity of up to 1250 mm, it is perfectly suited for modern large tile installations. The TX-MAX series features a powerful MULTIPOINT breaker system with up to 1200 kg breaking force, allowing clean and efficient separation even on the hardest porcelain tiles.

Its rotating square system enables fast and precise angular cuts from 0º to 45º, while the ergonomic one-hand operation system improves workflow speed and user control. The reinforced aluminum base and steel guide system ensure maximum stability and long-term performance under intensive use conditions.

Designed with professional efficiency in mind, the TX-1250 MAX combines power, precision, and ease of use in one robust solution.

Key Features

• Suitable for intensive cutting of ceramic, porcelain, and extruded tiles
• 1250 mm cutting capacity for large-format tiles
• High breaking force (1200 kg) for powerful and clean cuts
• MULTIPOINT breaker system for precise pressure distribution
• One-hand operation with trigger system for faster workflow
• Rotating square system for accurate 0º–45º angle cuts
• Ø30 mm tubular steel guides for maximum stability
• Reinforced aluminum base for durability and rigidity

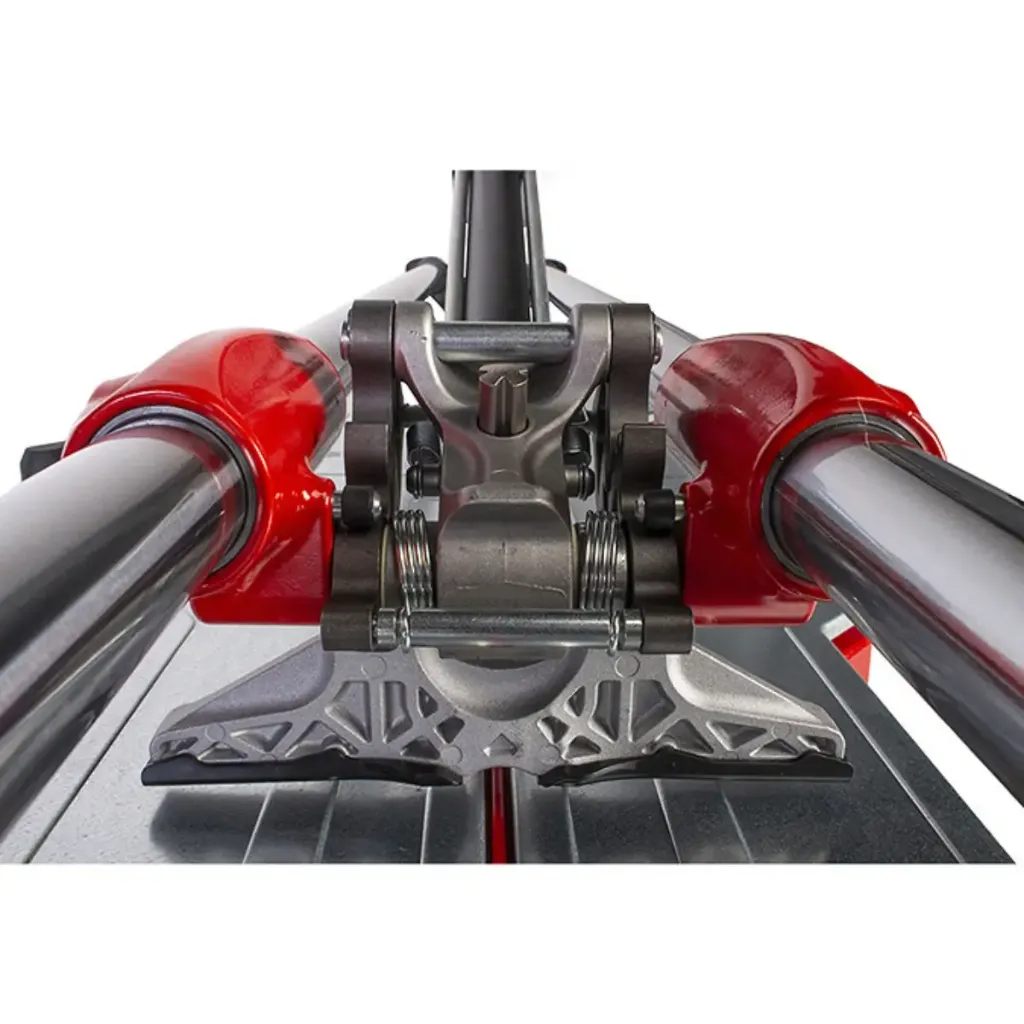

• Smooth sliding head with self-lubricated bushes
• Lateral stop for repetitive and narrow cuts
• Ergonomic soft grip handle for comfort
• Includes EXTREME scoring wheels (Ø 8 mm and Ø 22 mm)
• Compatible with full range of PLUS scoring wheels
• Includes protective carry case

Rubi TX 1250 MAX Manual Tile Cutter 1200mm – Technical Specifications

• Model: TX-1250 MAX
• Cutting Length: 1250 mm
• Diagonal Cutting Length: 85 × 85 cm
• Cutting Height: 3–21 mm
• Breaking Force: 1200 kg
• Application: Ceramic, porcelain, and extruded tiles
• Guide System: Ø30 mm tubular steel guides
• Base: Reinforced aluminum base with central rib
• Cutting Type: Straight and 0º–45º angle cuts
• Operation Type: Manual (one-hand operation supported)
• Scoring Wheels Included: Ø 8 mm and Ø 22 mm (EXTREME series)
• Compatibility: RUBI PLUS scoring wheels
• Additional Features: Rotating square, lateral stop, carry case included
