Kristal Herkül Manual Tile Cutter 935mm with Motor and Stand

Kristal Herkül Manual Tile Cutter 935mm with Motor and Stand

Kristal Herkül Manual Tile Cutter 935mm with Motor and Stand is a professional tile cutting solution designed for precise and efficient cutting of ceramic and porcelain tiles, especially those with rough or hard surfaces. Built for demanding jobsite conditions, the machine combines a powerful motorized cutting system with a robust steel frame to ensure durability and long-term performance.

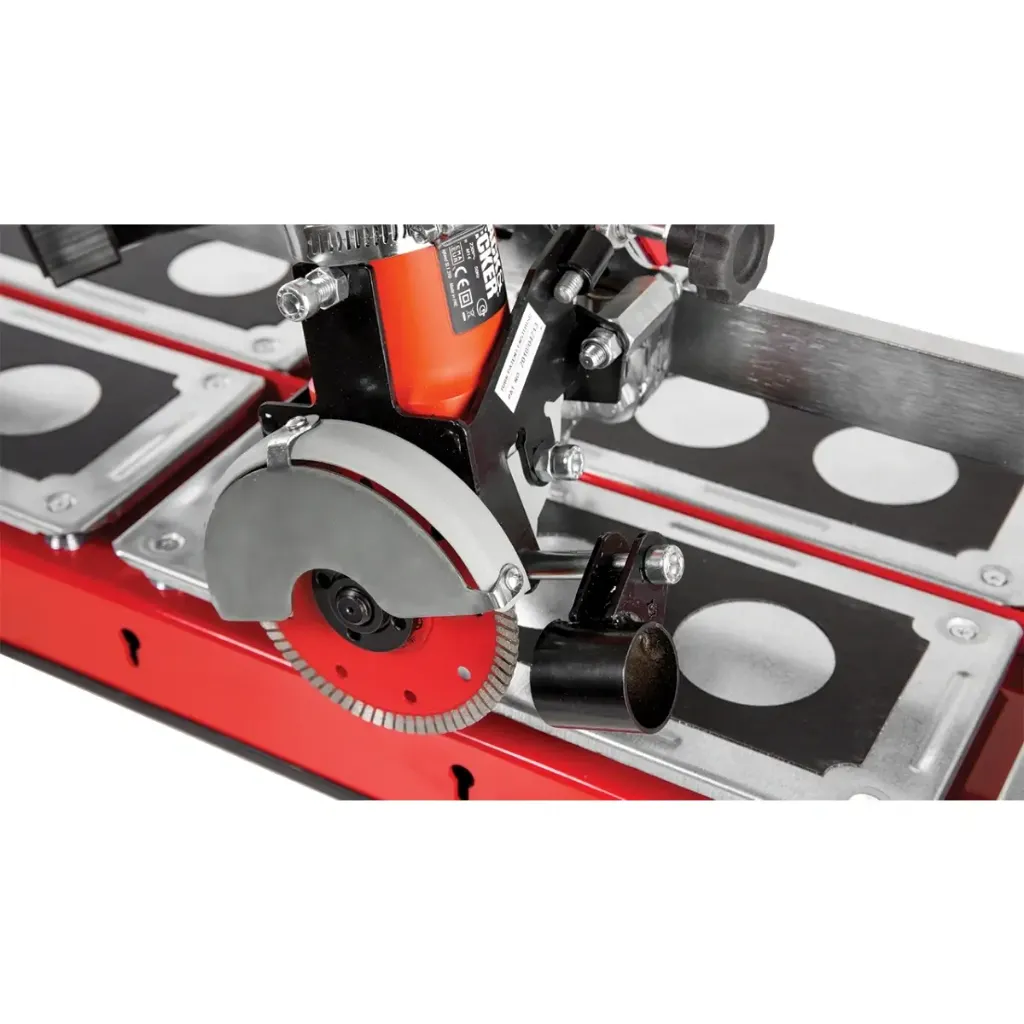

Equipped with a high-speed 750 W motor and Ø115 mm turbo diamond blade, the Herkul cutting machine delivers smooth and accurate cuts even on difficult tile surfaces where traditional manual tile cutters may struggle. The motorized cutting unit allows users to perform controlled dry cuts with excellent edge quality.

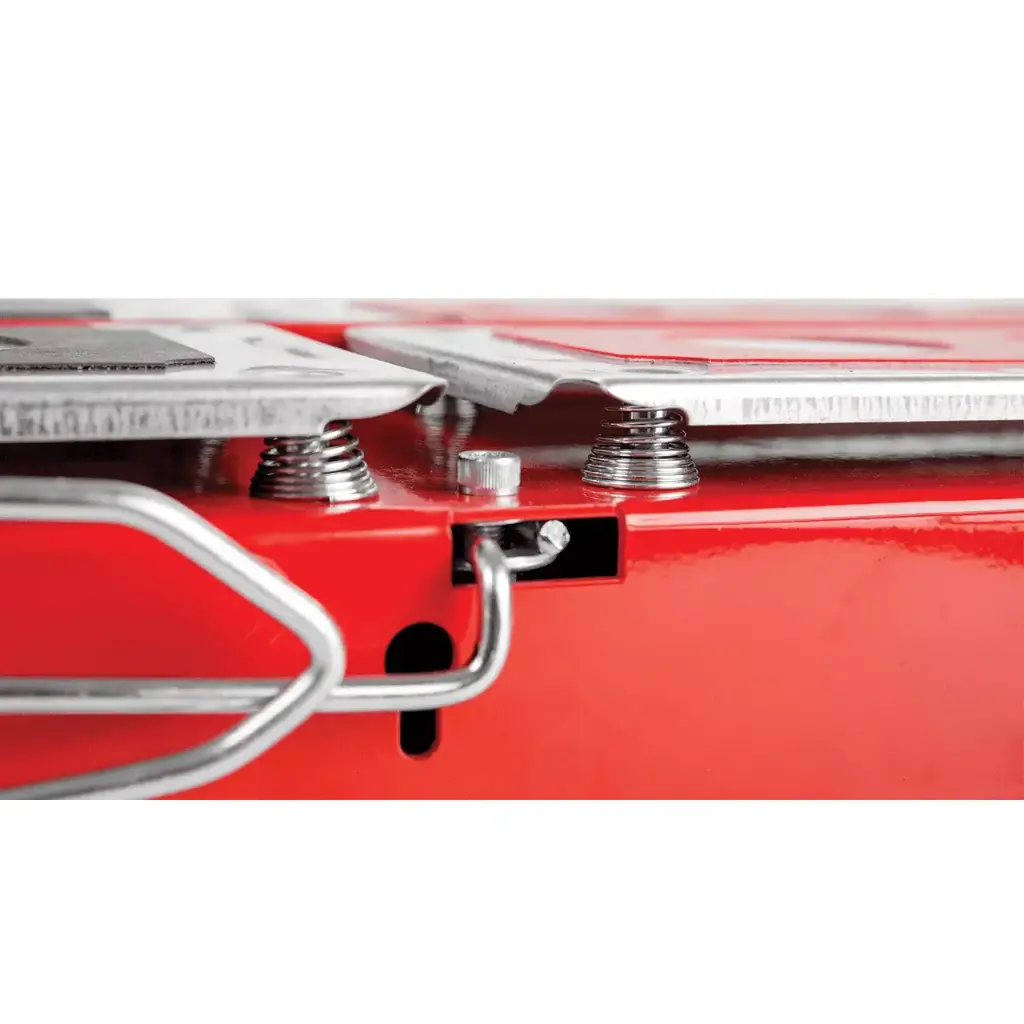

The machine features a specially designed round-section steel rail and spring-supported table, which enables easier and more controlled tile breaking. Its bearing-supported carriage system, consisting of 13 sealed bearings, ensures smooth movement and high cutting precision with minimal friction.

For enhanced versatility, the Herkul tile cutter includes an adjustable angle guide, allowing users to perform diagonal and angled cuts with accuracy. Additionally, when the tile holding mechanism is removed, the machine can also function as a manual tile cutter, providing flexibility for different cutting applications.

With its reinforced steel construction, double breaking mechanism, and precision-engineered rail system, the Kristal Herkul Motorized Tile Cutting Machine offers reliable performance for professional tile installers and construction professionals.

Foldable, shock-absorbing legs allow high-level cutting without needing an extra table. Additionally, with optional side tables, the machine can be converted into a bench-style tile cutter for added versatility.

Kristal Herkül Side Table – 35790  is sold separately.

Kristal Herkül Manual Tile Cutter 935mm with Motor and Stand - Technical Specifications

• Motorized Cutting System: Powerful 750 W motor with Ø115 mm turbo diamond blade for precise and effortless cutting of ceramic tiles, even on rough surfaces.
• Round-Section Steel Rail: Centrally positioned steel bar enables easier and controlled tile breaking.

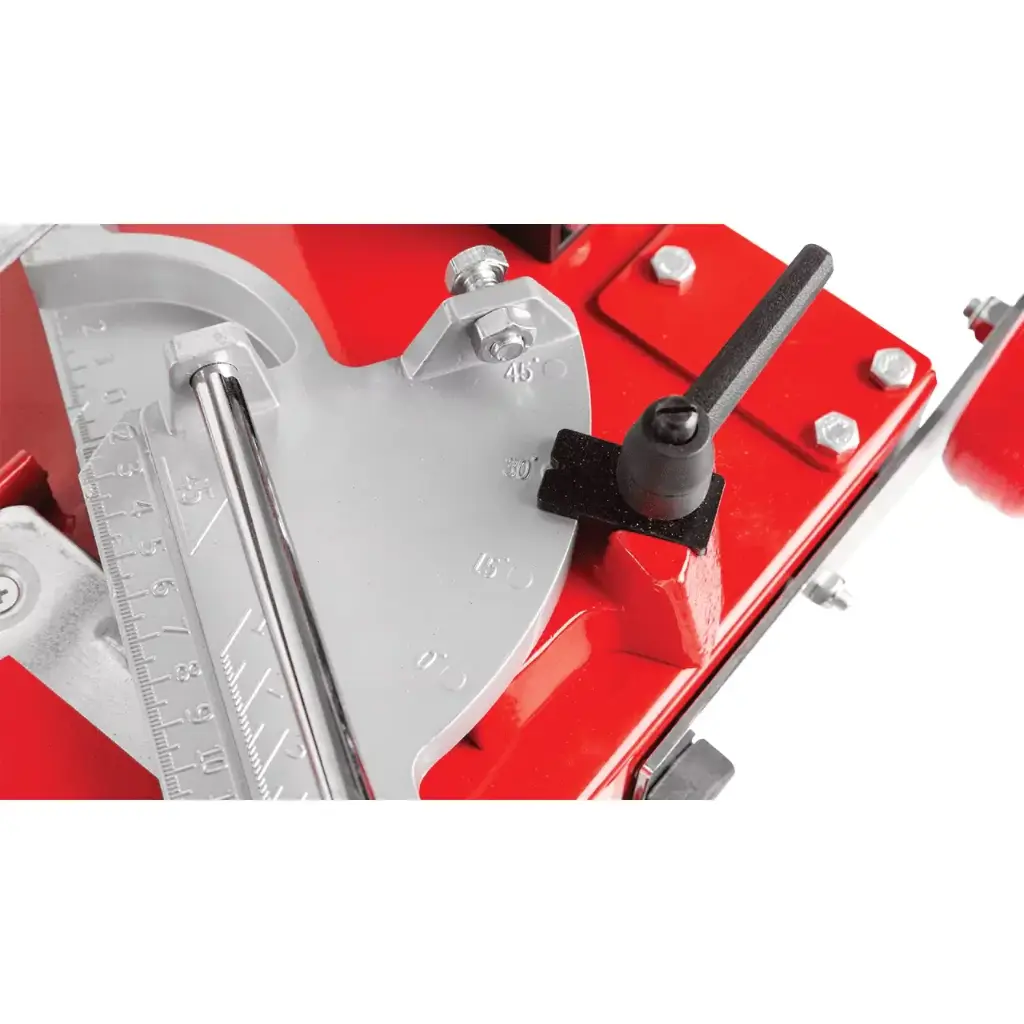

• Adjustable Miter Guide: Specially designed guide allows accurate angled and diagonal cuts.
• Heavy-Duty Professional Design: Built for professional craftsmen with reinforced frame and durable construction.

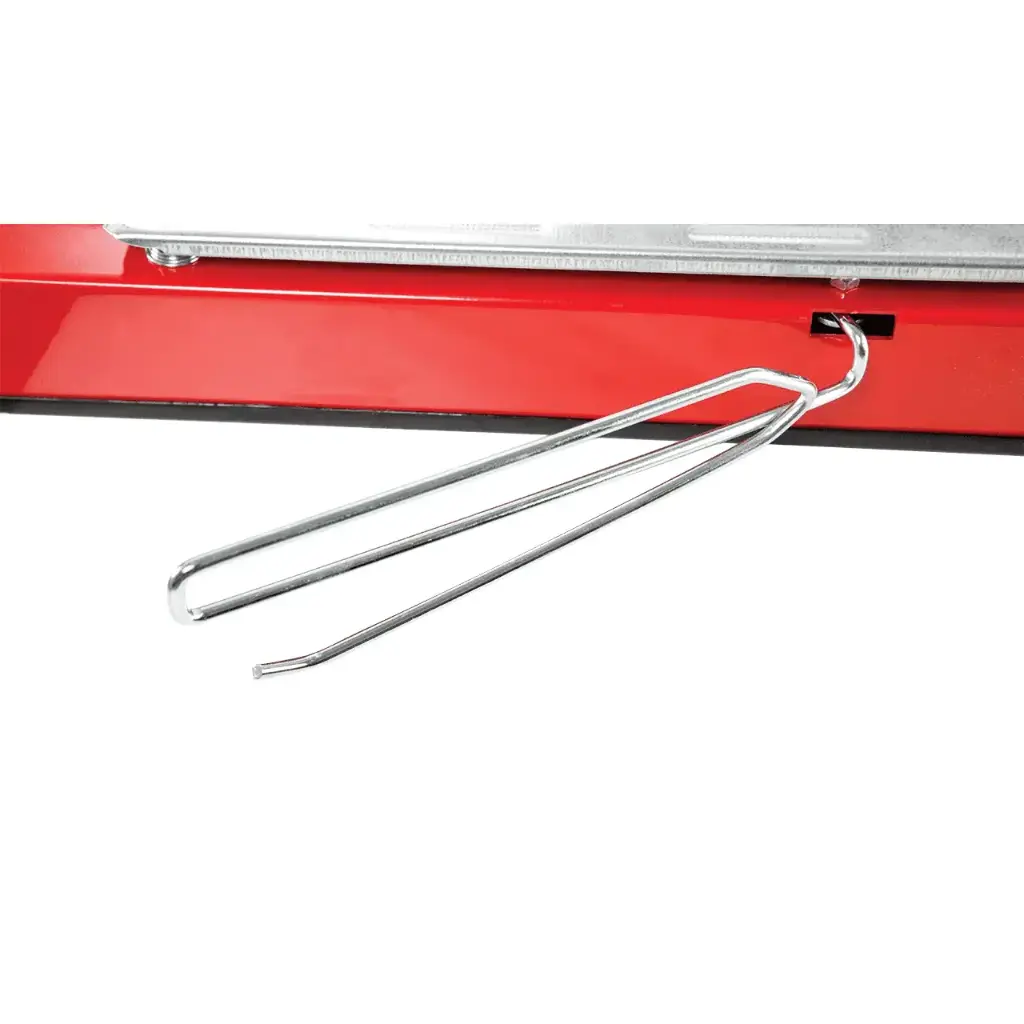

• Dual Side Support Wires: Ensure tiles remain balanced and stable during cutting.
• Zero-Play Bearing Carriage: Bearing-supported arm mechanism ensures vibration-free, precise cutting.
• Bearing Carriage on Steel Rail: The 40×15 mm steel rail allows smooth, accurate movement of the carriage.

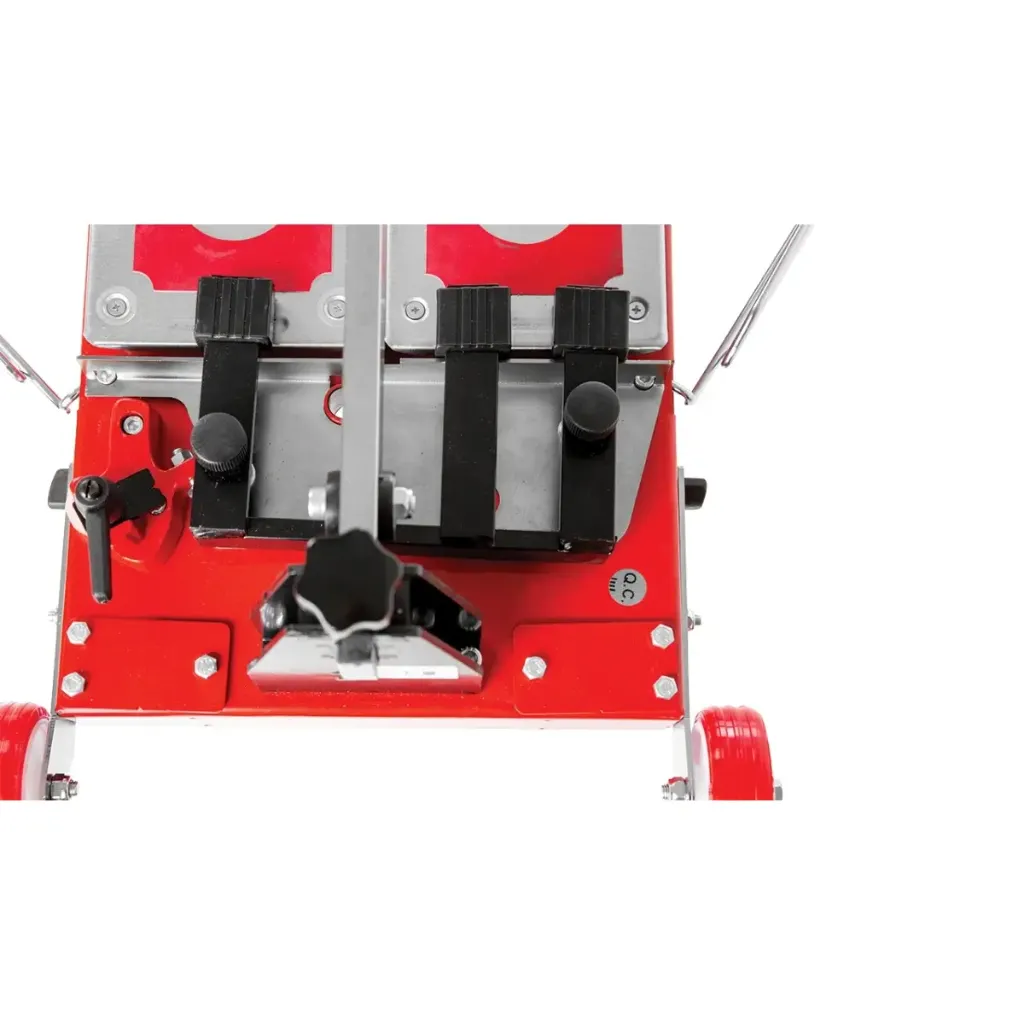

• Dual Breaker Mechanism: Plastic-coated breaker tips protect tiles and provide smooth, consistent breaking.
• Magnetic Small Breaker: Integrated magnet keeps the breaker floating during scoring for easier handling.
• Foldable Shock-Absorbing Legs: Cutting can be performed at elevated height without extra tables.
• Optional Side Tables: Can be mounted on both sides, converting the machine into a bench-style tile cutter.
