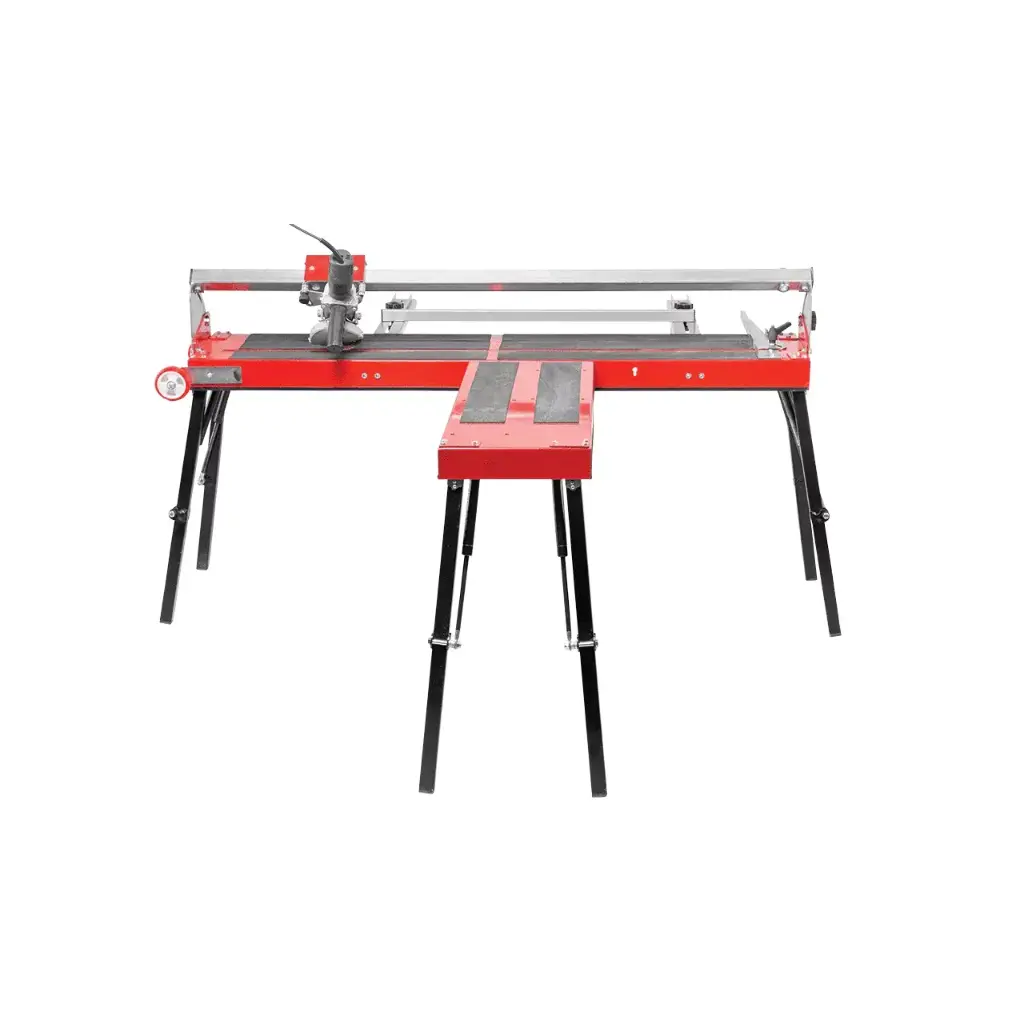

Kristal Titan Bevel Cutting Machine 1600mm
Kristal Titan 45° Bevel Cutting Machine 1600 mm is a professional-grade machine engineered to perform precise, clean, and accurate bevel (45° angled) cutting operations on ceramic and tile surfaces. With its 1600 mm straight cutting capacity, it is ideal for large-format tiles and demanding job site applications, delivering high accuracy and consistent performance in detailed cutting tasks.
Its reinforced structural design minimizes vibration during operation, ensuring stable cutting performance even on large-format materials. The system is built for continuous use in professional environments where precision, durability, and surface quality are critical.
Key Features
- Complete Set: The machine comes fully equipped with legs, side table, angle guide, and motor; providing a complete standalone bevel cutting solution.
-
Stable and Safe Cutting: The integrated side table enhances balance and stability, especially when working with large-format tiles, ensuring more controlled and secure cutting operations.
-
Precision Bevel Cutting: The 45° adjustable angle mechanism allows smooth, clean, and aesthetically refined bevel cuts while minimizing edge chipping.
-
Powerful Motor: Equipped with a 720 W motor, the machine handles various ceramic and tile materials with consistent cutting performance.
-
Wide Adjustment Range: The 3–20 mm breaking / bevel depth range enables versatile application across different tile thicknesses.
Kristal Titan Bevel Cutting Machine 1600mm - Technical Specifications
- Code: 35549
- Straight Cutting Capacity: 1600 mm – suitable for large-format surface applications.
-
Diagonal Cutting Capacity: 1130 × 1130 mm – provides flexibility for diagonal cuts on larger tiles.
-
Breaking / Bevel Depth: 3 – 20 mm – adjustable depth for multiple cutting requirements.
-
Motor Power: 720 W – ensures strong and stable cutting performance.
-
Weight: 56.50 kg – enhances machine stability and durability during operation.
