| Brand | Kristal |
| Length | 1350 mm |
| Weight | 35,60 kg |
| Brand: Kristal |
| Length: 1350 mm |
| Weight: 35,60 kg |
Kristal Herkül Tile Cutter 1350mm with Laser is a professional-grade ceramic tile cutting machine designed for precise, stable, and efficient cutting operations. Developed for expert craftsmen and demanding construction environments, this cutter combines mechanical strength with laser-guided accuracy to deliver consistently flawless cutting results.

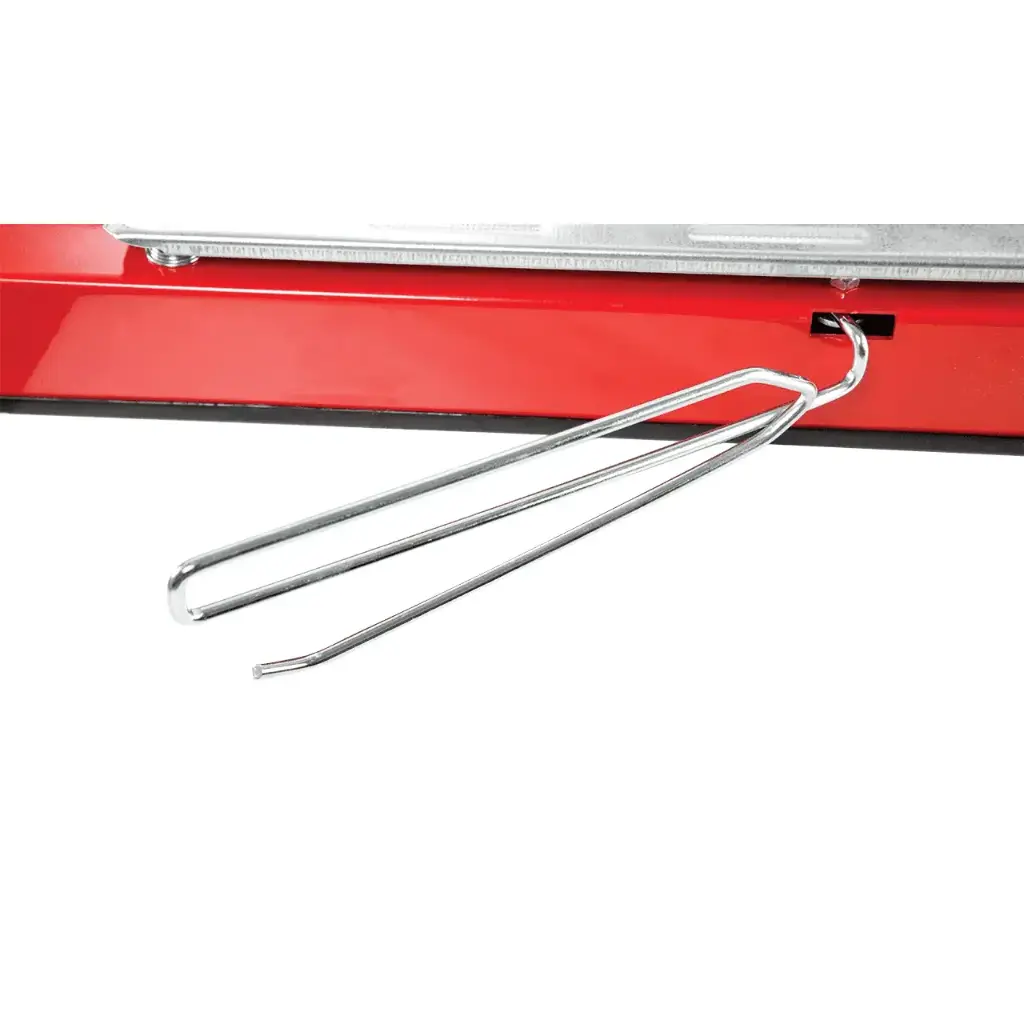

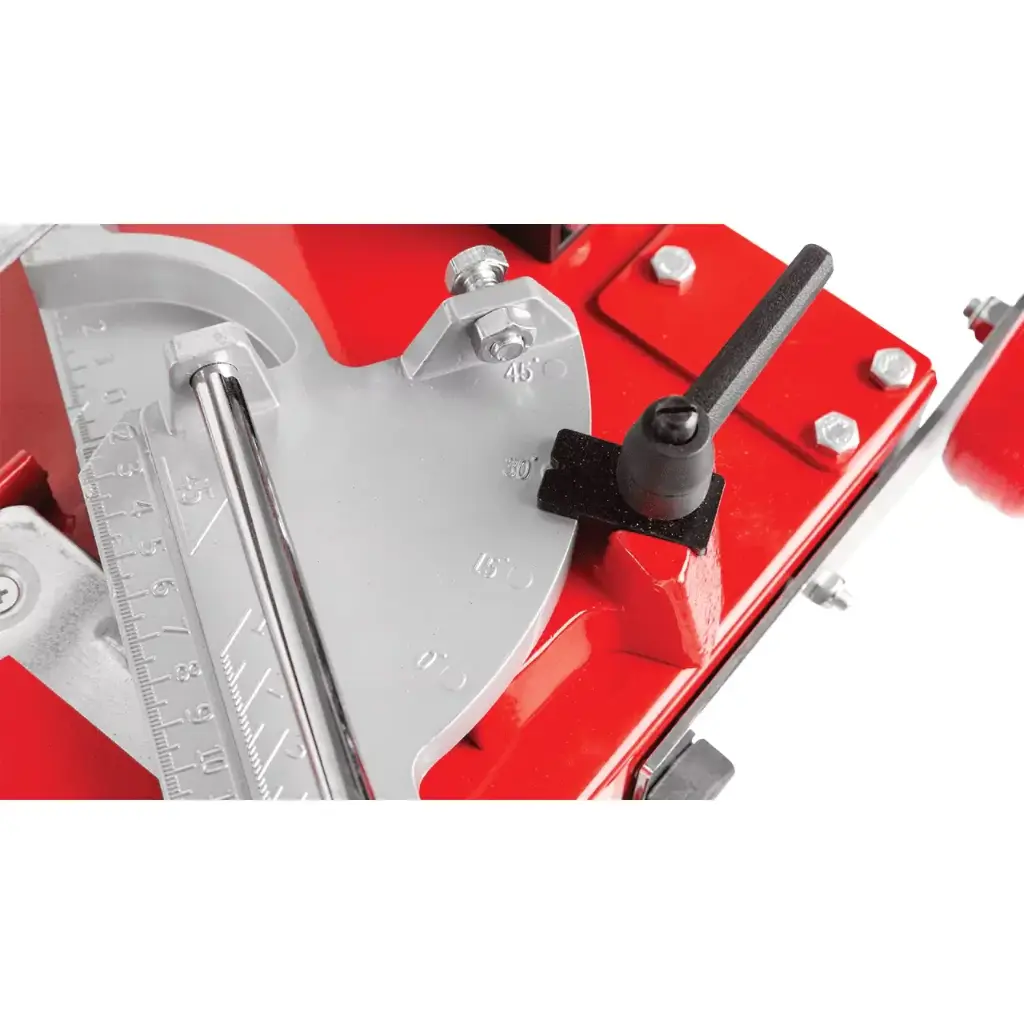

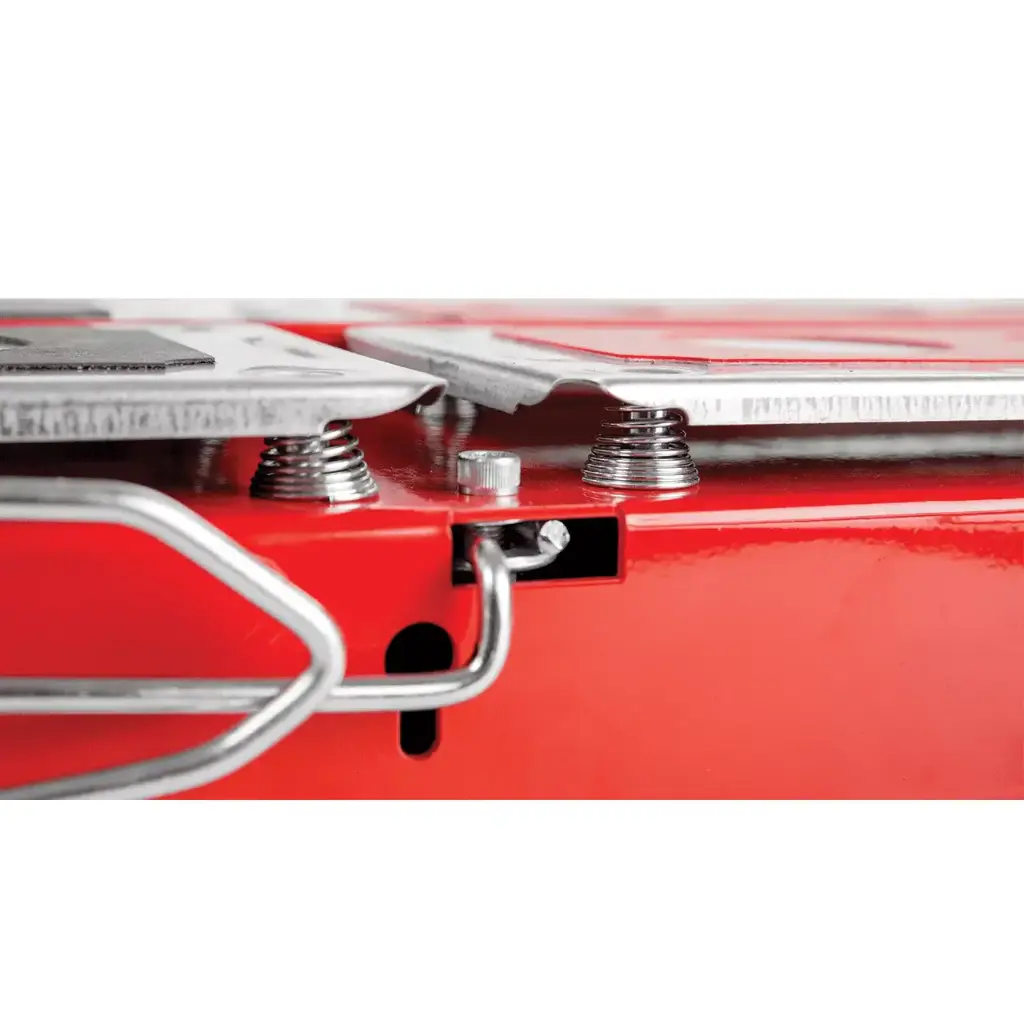

At the center of the machine, a round-section steel bar allows tiles to break more easily and smoothly after scoring. The specially designed adjustable miter square enables precise cuts at different angles while maintaining excellent stability during operation. Support wires mounted on both sides of the machine keep tiles balanced and prevent movement throughout the cutting process.

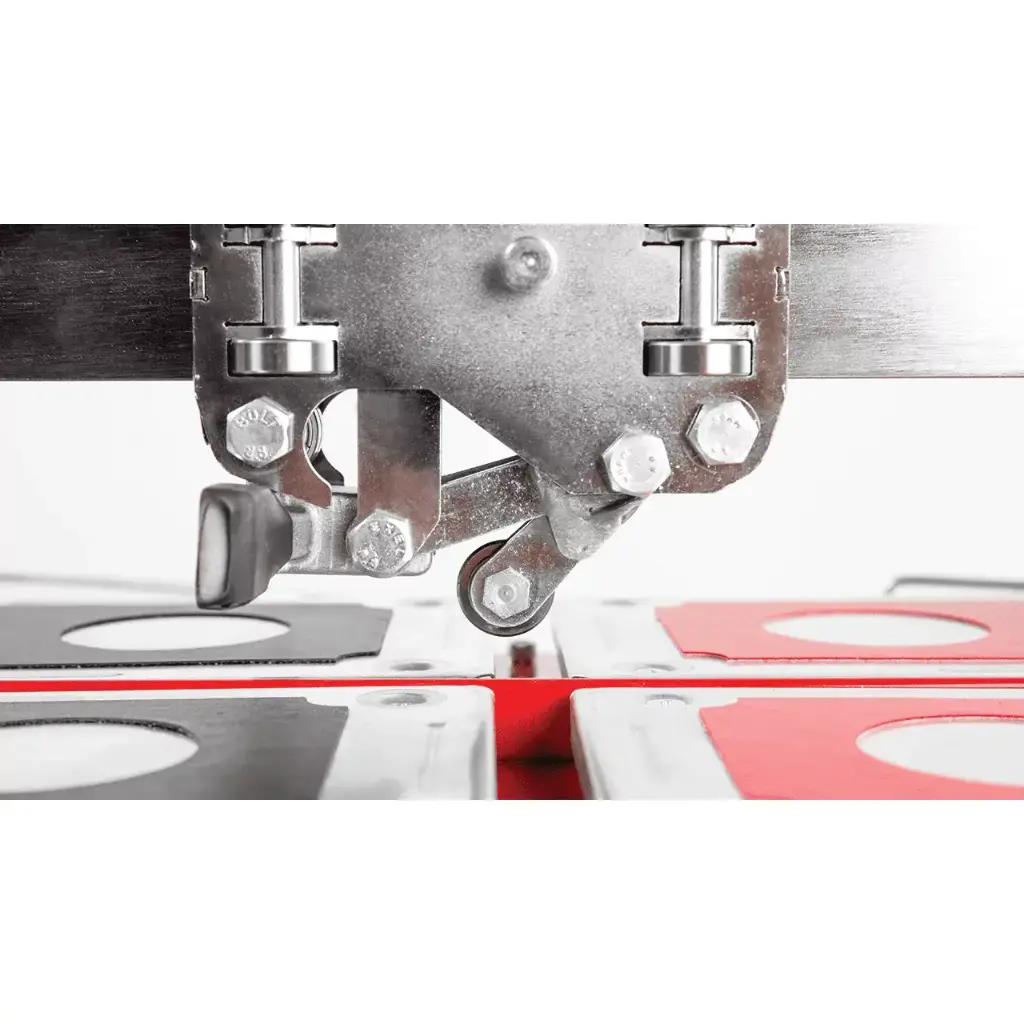

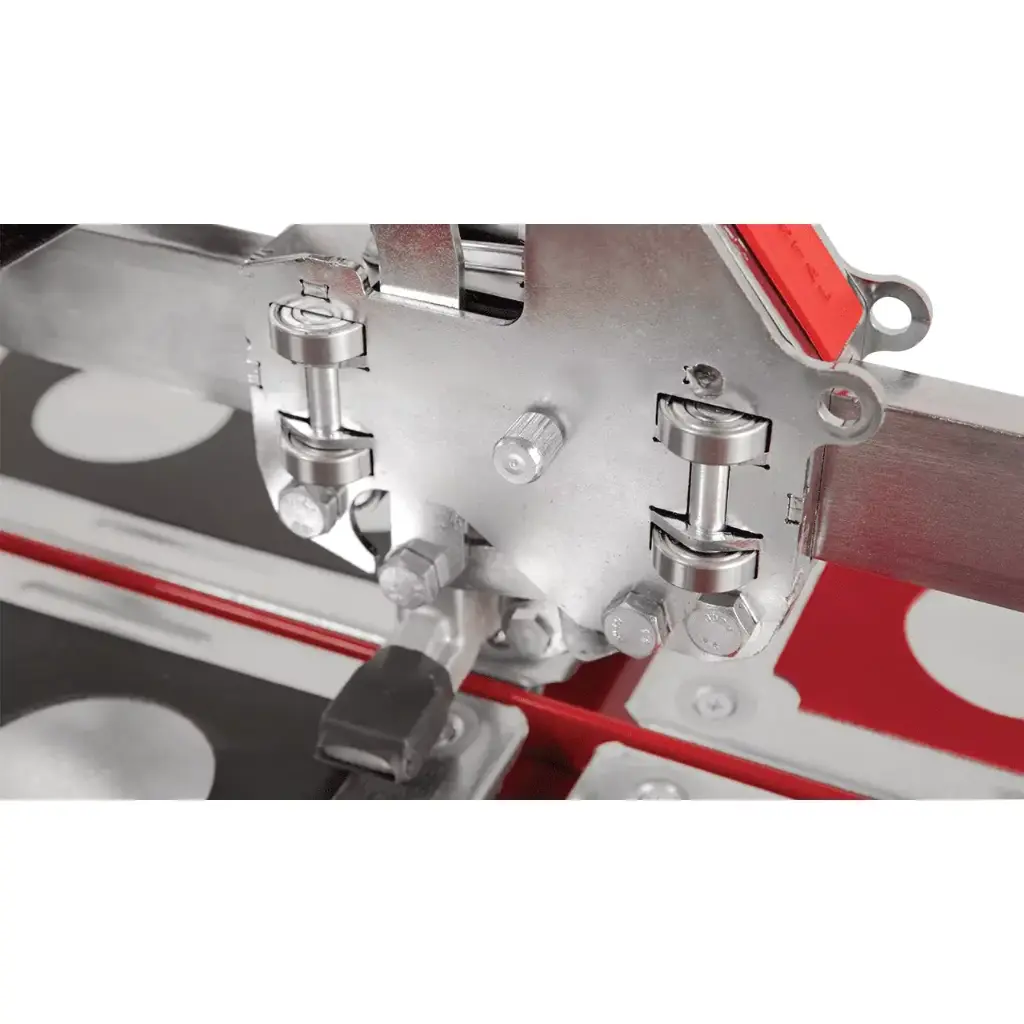

The zero-play bearing arm mechanism ensures vibration-free movement and highly accurate scoring, while the bearing carriage glides smoothly on a durable 40×15 mm steel bar, providing long-term strength and reliability for intensive professional use.

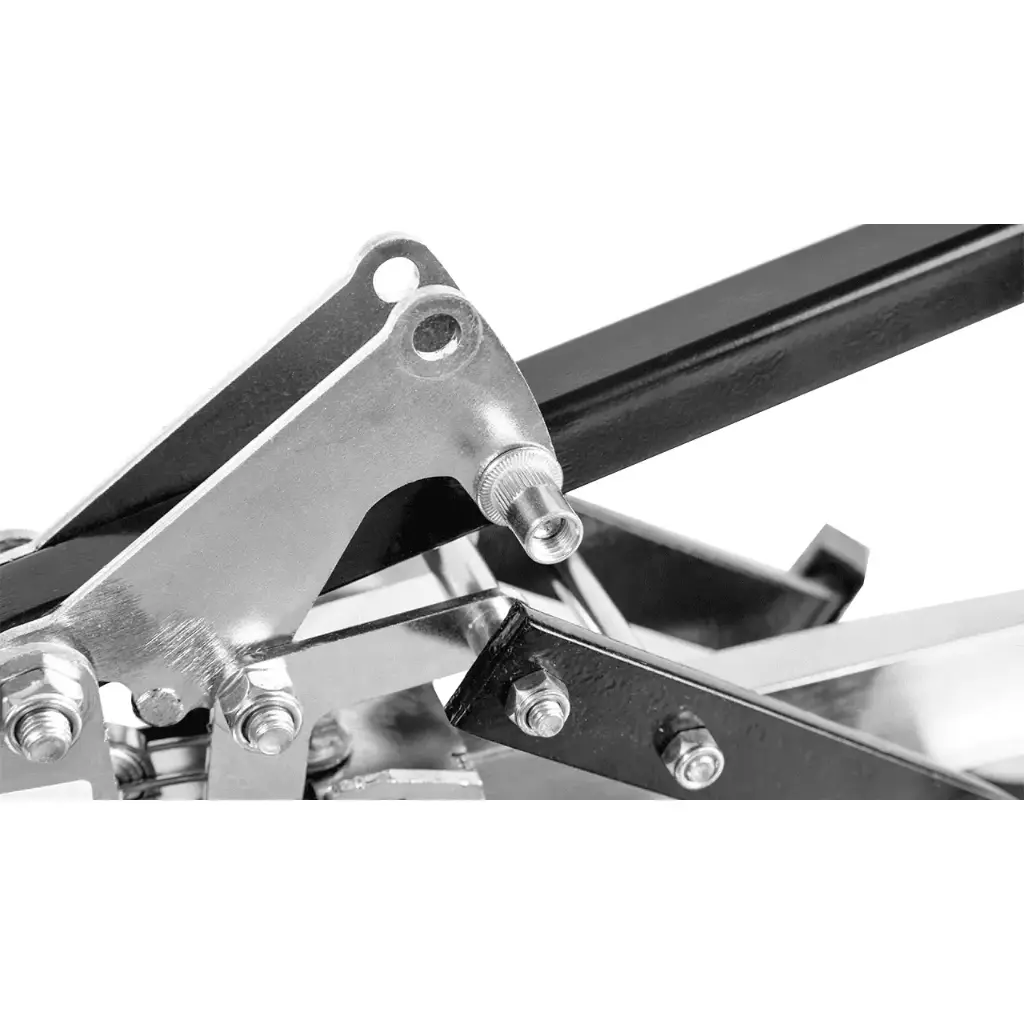

Equipped with a dual breaker system, the machine delivers clean and controlled tile separation. The breaker tips are plastic-coated to protect tile surfaces during the breaking process. Additionally, the magnetic small breaker keeps the breaker suspended during scoring, improving handling and operational precision.

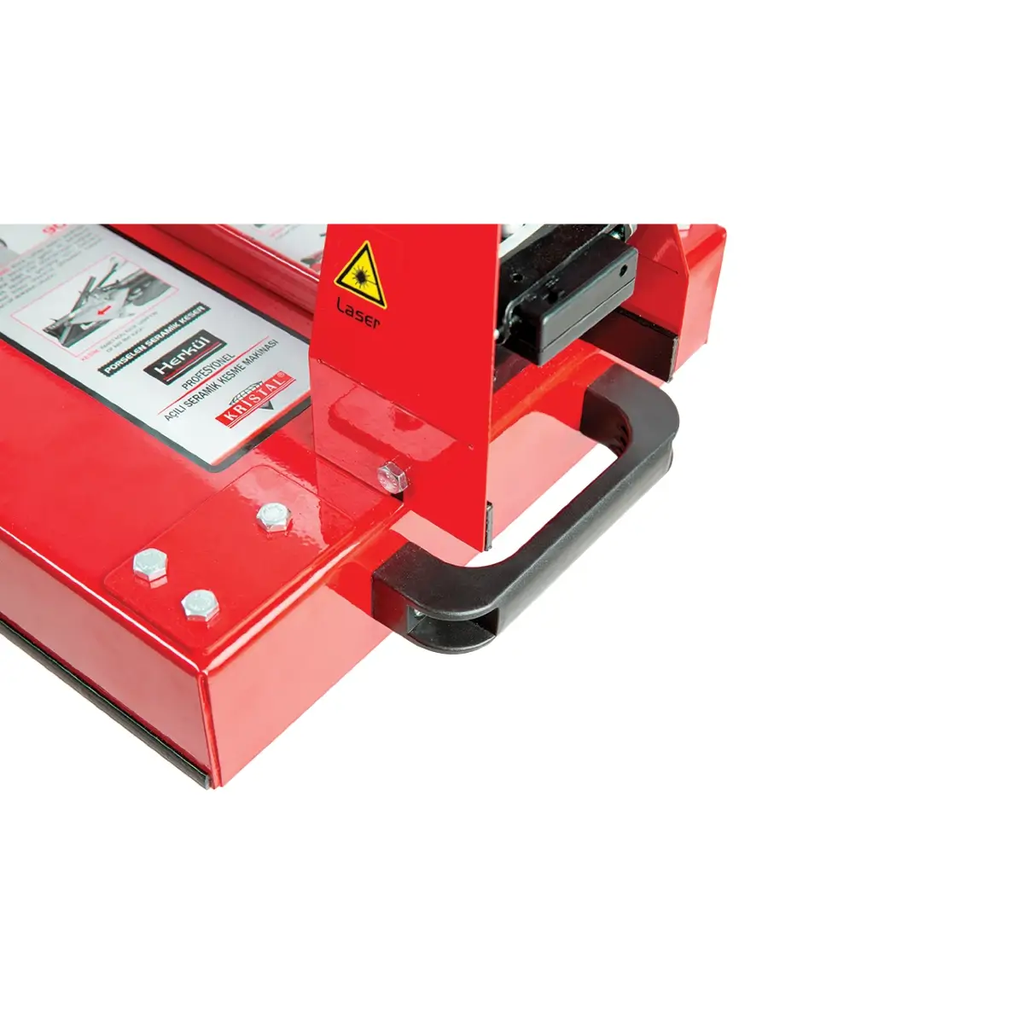

The integrated laser guide system increases cutting accuracy by clearly projecting the breaking line on the tile surface before scoring. This allows users to align tiles quickly and perform precise cuts without additional marking. The laser beam direction can be adjusted using screws located next to the laser module, and the module operates with two AA batteries, providing convenient and reliable operation on job sites.
Combining professional engineering, laser-guided precision, and durable construction, Kristal Herkül Laser Tile Cutter 1350mm is an ideal solution for professional tilers who require accuracy, efficiency, and reliability in ceramic tile cutting.
| Code | Straight Cut | Corner Cut | Breaking Thickness | Box Quantity | Weight (kg) | Box Dimensions (cm) |
|---|---|---|---|---|---|---|
| 35600 | 640 mm | 450 × 450 mm | 3 – 20 mm | 1 | 22.80 | 34 × 99 × 24 |
| 35601 | 750 mm | 530 × 530 mm | 3 – 20 mm | 1 | 24.50 | 34 × 117 × 24 |
| 35602 | 935 mm | 660 × 660 mm | 3 – 20 mm | 1 | 28.50 | 34 × 132 × 26 |
| 35603 | 1200 mm | 840 × 840 mm | 3 – 20 mm | 1 | 33.50 | 34 × 159 × 26 |
| 35604 | 1350 mm | 950 × 950 mm | 3 – 20 mm | 1 | 35.60 | 34 × 174 × 26 |
| 35605 | 1600 mm | 1130 × 1130 mm | 3 – 20 mm | 1 | 40.80 | 34 × 204 × 26 |
