| Brand: Kristal |
| Length: 1350 mm |
| Weight: 40,70 kg |
Kristal Herkül Manual Tile Cutter 1350mm with Laser and Stand is a professional-grade ceramic tile cutting machine designed for precise, stable, and efficient cutting operations on large-format tiles. Developed for professional tilers and demanding construction environments, this cutter combines durable engineering with laser-guided accuracy to deliver consistently reliable cutting results.

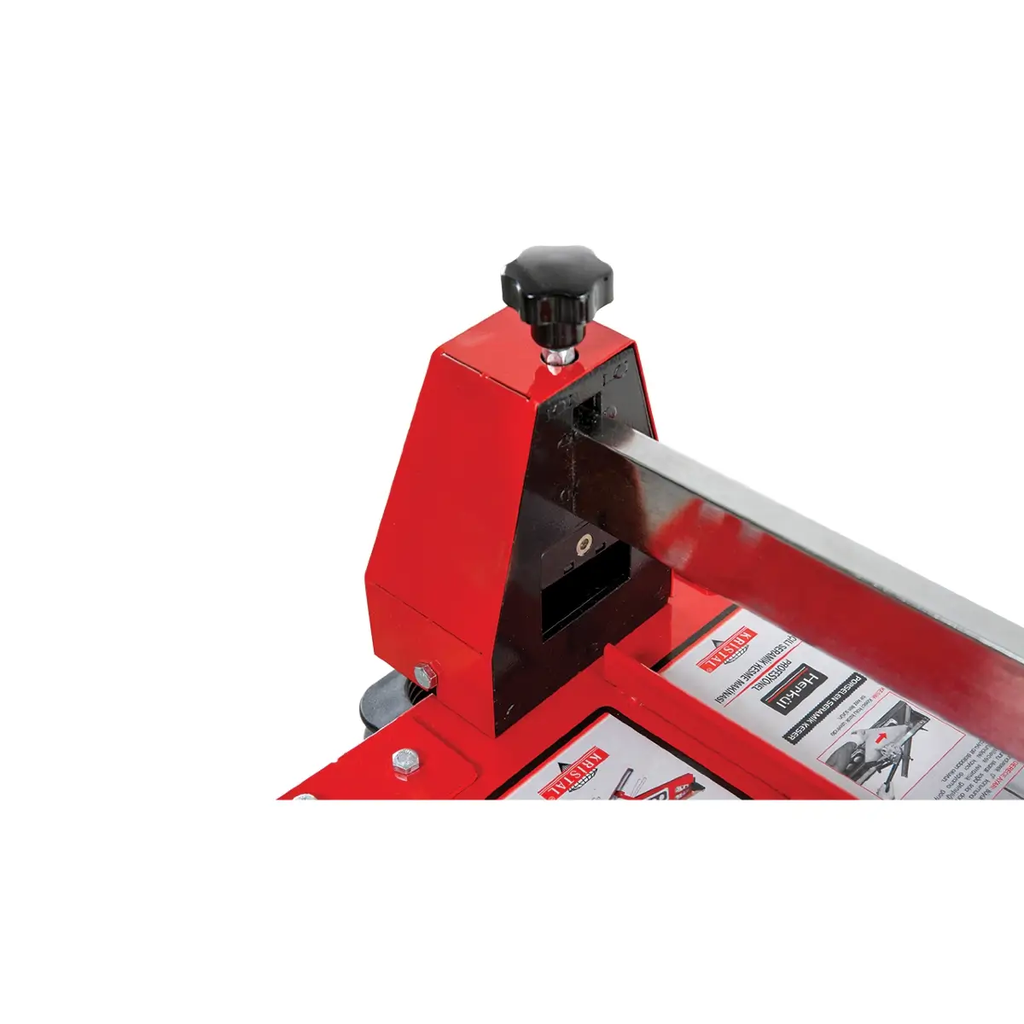

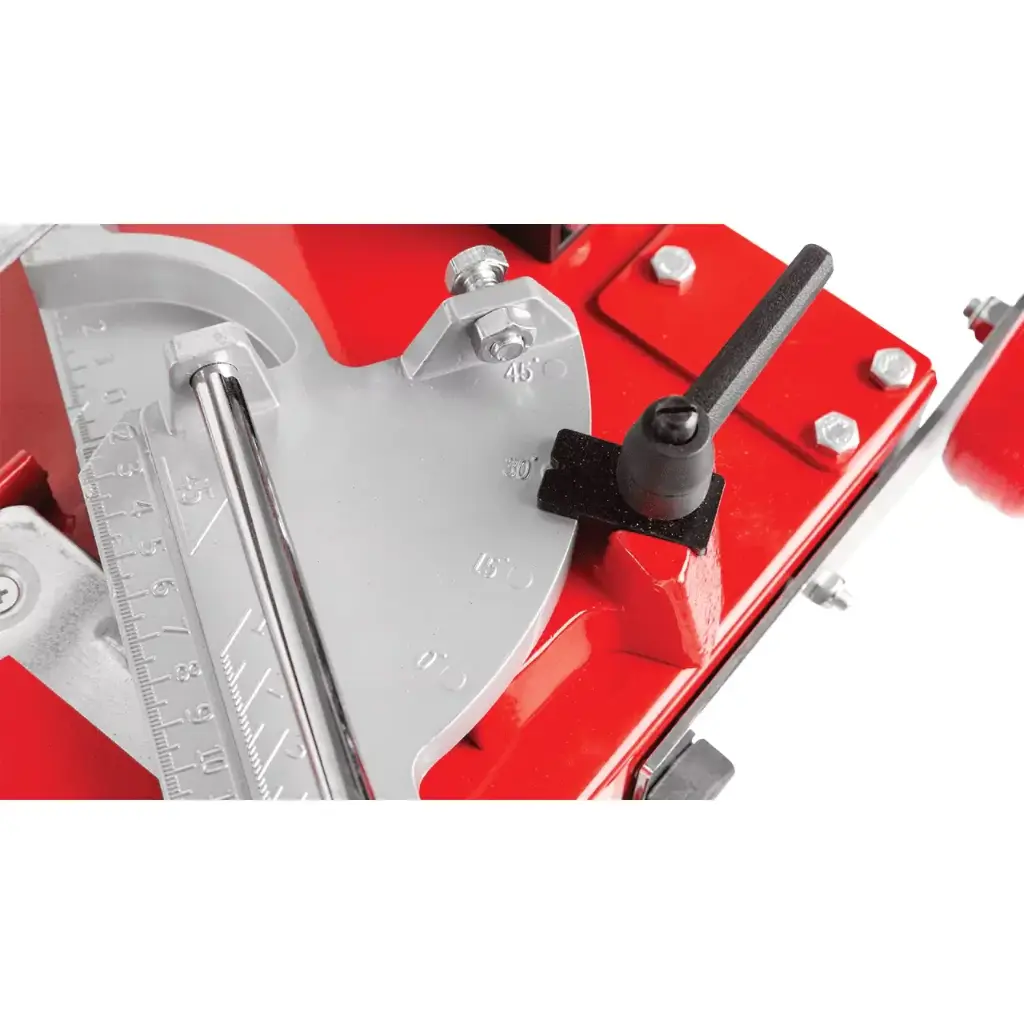

At the center of the machine, a round-section steel bar helps tiles break more easily and smoothly after scoring, ensuring controlled and clean tile separation. The specially designed adjustable miter square allows accurate cutting at different angles while maintaining excellent stability during operation.

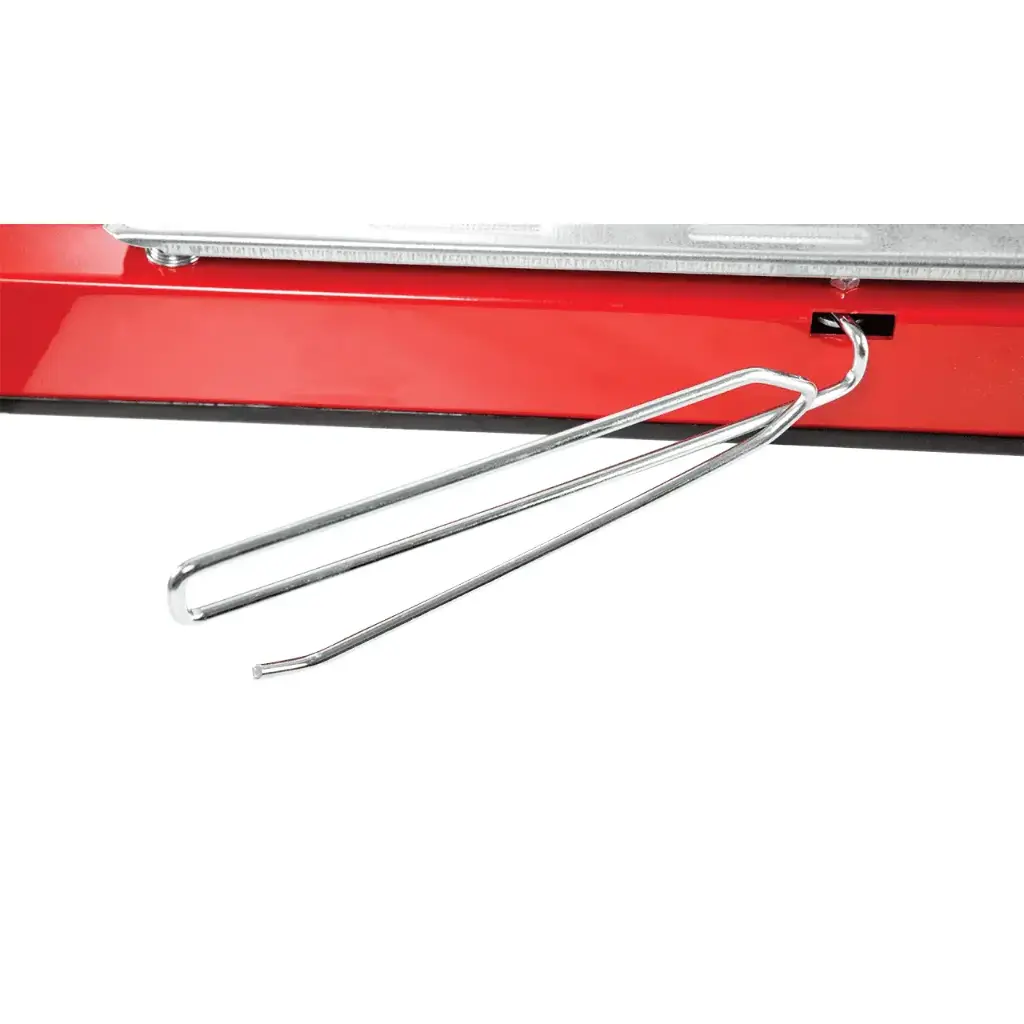

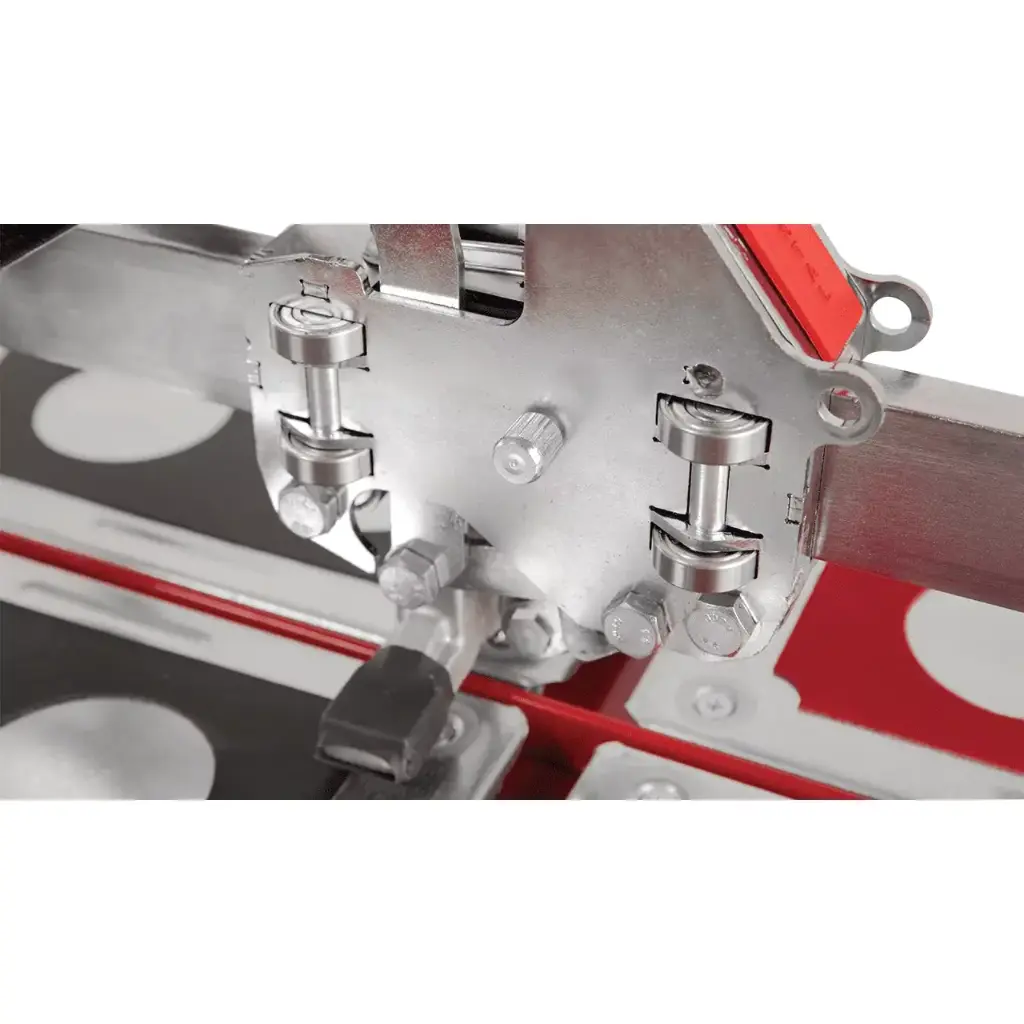

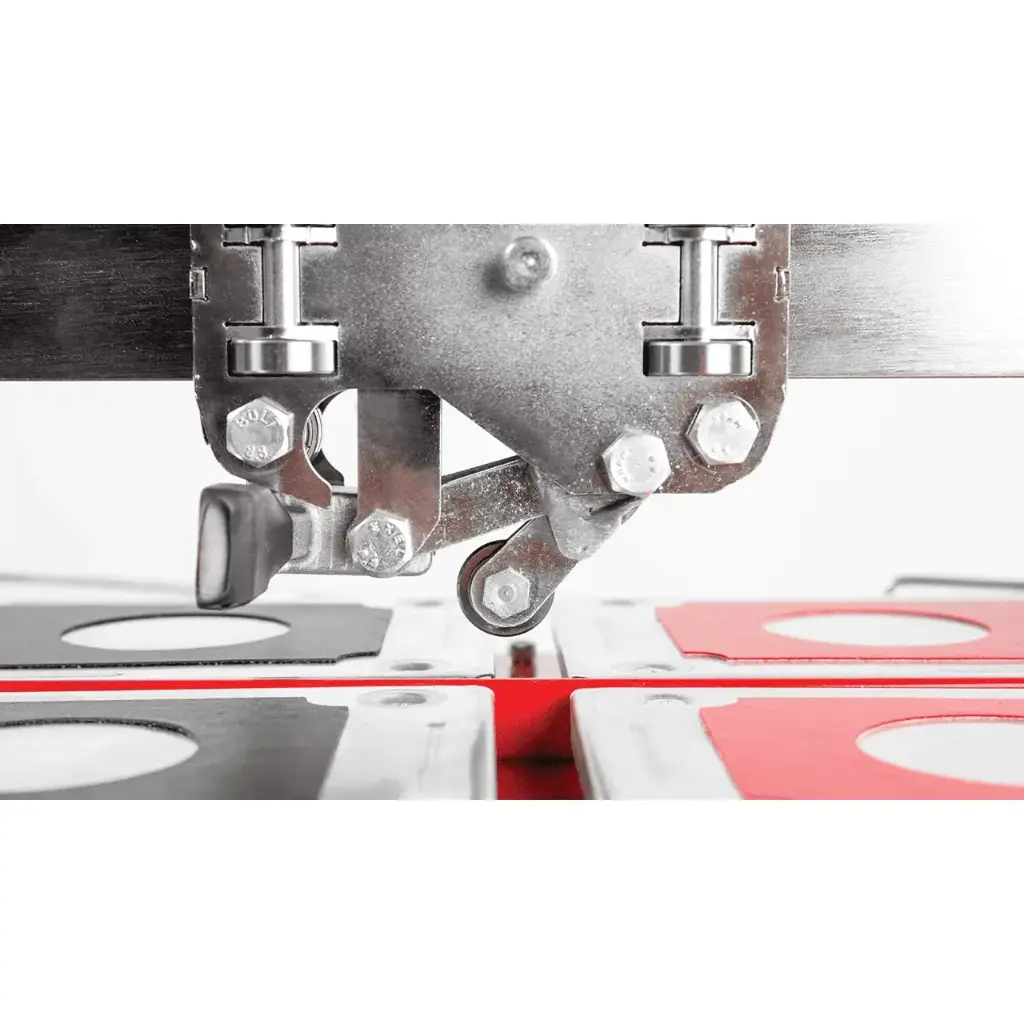

Support wires mounted on both sides of the machine keep tiles balanced and prevent unwanted movement during the cutting process. The zero-play bearing arm mechanism provides vibration-free movement and highly accurate scoring performance, while the bearing carriage moves smoothly on a durable steel guide bar, offering long-lasting strength for intensive professional use.

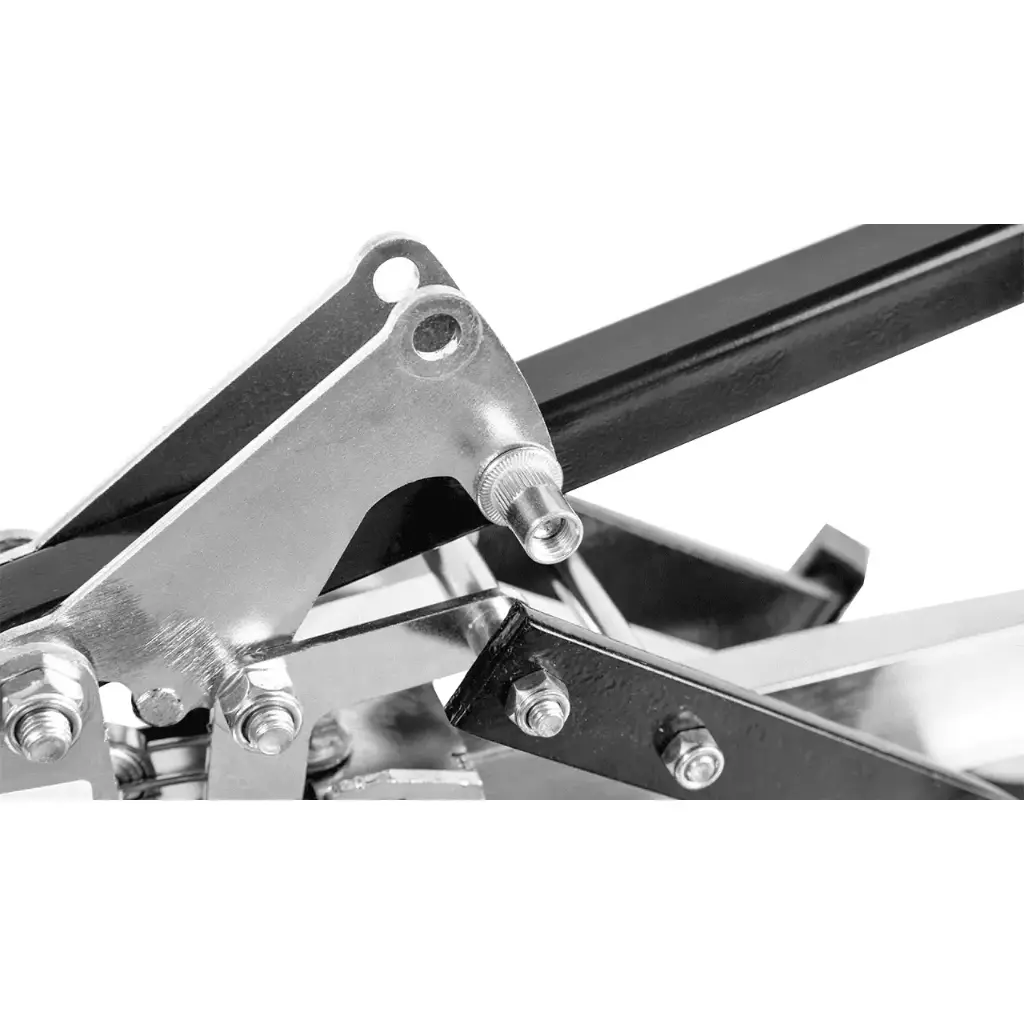

The machine features a dual breaker system with plastic-coated breaker tips that protect tile surfaces and allow controlled breaking. In addition, the magnetic small breaker keeps the breaker suspended during scoring, improving usability and precision.
Thanks to its foldable shock-absorbing legs, cutting operations can be performed at a comfortable working height without the need for an additional work table. Side tables that can be mounted on both sides of the machine provide additional support for large tiles, transforming the cutter into a practical professional tile cutting workstation.

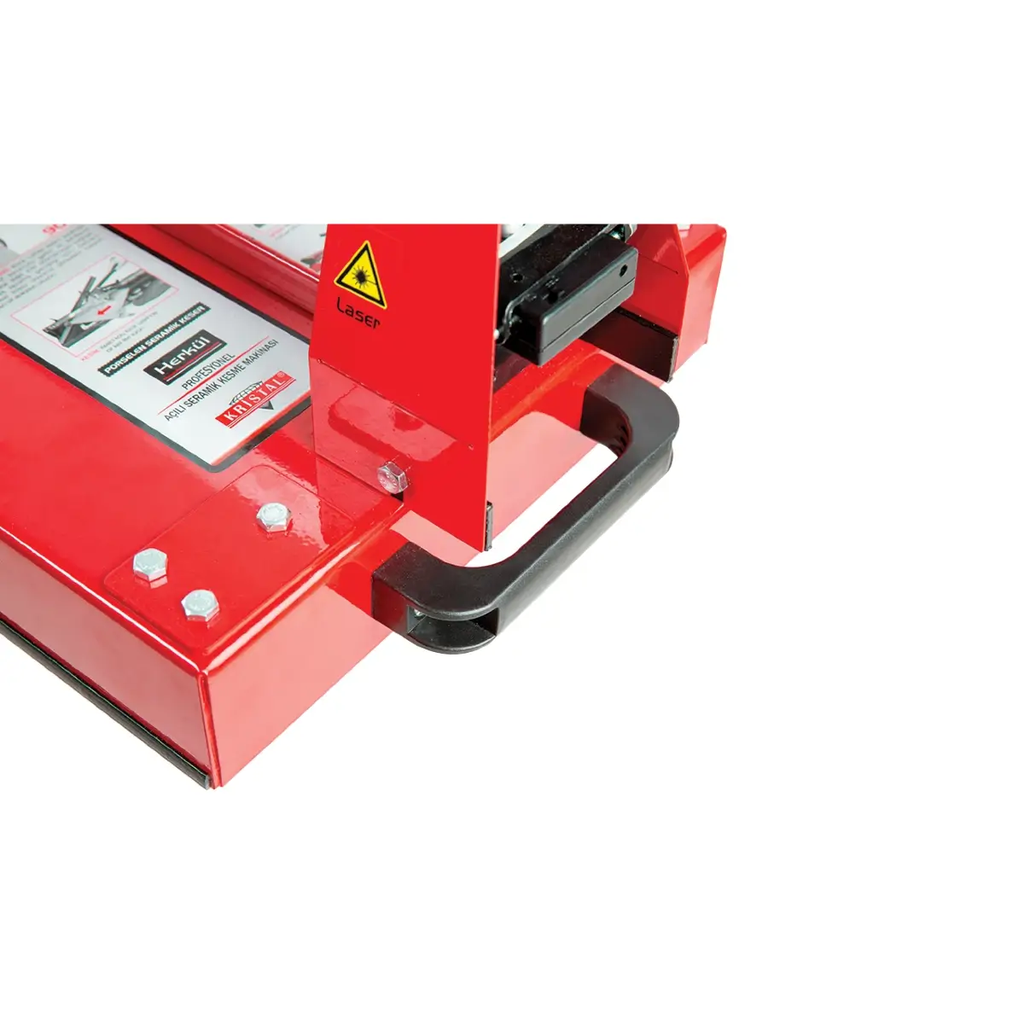

The integrated laser guide system increases cutting accuracy by projecting the breaking line directly onto the tile surface before scoring. This allows users to align tiles quickly and perform precise cuts without additional marking. The laser direction can be adjusted using screws next to the module, and the laser module operates with two AA batteries, making it practical for job-site use.
Combining mechanical strength, ergonomic design, and laser-guided precision, Kristal Herkül Manual Tile Cutter with Stand and Laser delivers efficient, stable, and highly accurate results for professional ceramic tile cutting applications.
Kristal Herkül Side Table – 35790 is sold separately.
| Code | Straight Cut | Corner Cut | Breaking Thickness | Box Quantity | Weight (kg) | Box Dimensions (cm) |
|---|---|---|---|---|---|---|
| 35600 | 640 mm | 450 × 450 mm | 3 – 20 mm | 1 | 22.80 | 34 × 99 × 24 |
| 35601 | 750 mm | 530 × 530 mm | 3 – 20 mm | 1 | 24.50 | 34 × 117 × 24 |
| 35602 | 935 mm | 660 × 660 mm | 3 – 20 mm | 1 | 28.50 | 34 × 132 × 26 |
| 35603 | 1200 mm | 840 × 840 mm | 3 – 20 mm | 1 | 33.50 | 34 × 159 × 26 |
| 35604 | 1350 mm | 950 × 950 mm | 3 – 20 mm | 1 | 35.60 | 34 × 174 × 26 |
| 35605 | 1600 mm | 1130 × 1130 mm | 3 – 20 mm | 1 | 40.80 | 34 × 204 × 26 |
