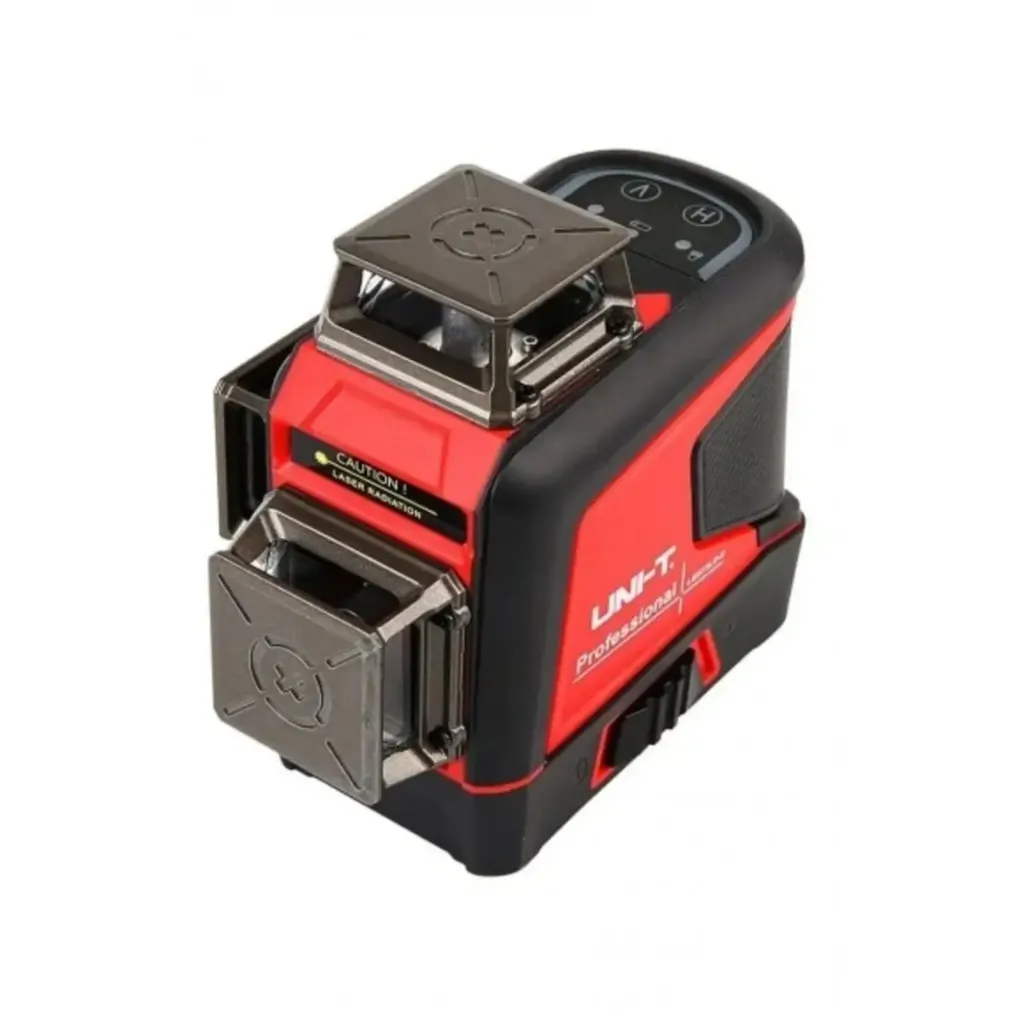

Unit LM573LD-II Laser Level Green

Unit LM573LD-II Laser Level Green

Unit LM573LD-II Laser Level Green is a professional-grade 3D laser leveling tool designed for precise alignment, layout, and measurement applications in construction, renovation, interior decoration, and installation projects. Equipped with advanced Osram Green LD laser technology, it delivers exceptional visibility even in bright and large working environments.

Featuring 12 laser lines (3D projection) with horizontal, vertical, and cross-line projection capabilities, the LM573LD-II provides accurate and reliable leveling for flooring, tiling, cabinetry installation, wall alignment, and general construction tasks. Its self-leveling system automatically corrects minor positioning errors, while the manual mode allows angled line projection when required.

Powered by a high-capacity 5200mAh Li-ion battery, the device offers extended operating time and convenient charging via the integrated USB Type-C port. The included mounting bracket, remote control, and carrying case make it a complete solution for professionals seeking efficiency, precision, and portability.

Key Features

• 12-Line 3D Green Laser Projection: Provides comprehensive horizontal and vertical coverage for accurate alignment tasks.
• Osram Green LD Laser Technology: Delivers superior visibility compared to traditional red lasers, especially in bright environments.
• 40m Working Range: Suitable for professional indoor and outdoor leveling applications.
• Self-Leveling System: Automatically levels within ±3° for fast and accurate setup.
• Manual Mode Available: Allows custom angled line projection when self-leveling is not required.
• Outdoor Pulse Mode: Improves visibility and performance during outdoor use.
• High Precision Accuracy: ±3mm at 10 meters for dependable measurement results.
• Remote Control Function: Enables convenient operation from a distance.
• 5200mAh Rechargeable Battery: Provides up to 6 hours of continuous operation.
• USB Type-C Charging: Fast and convenient charging solution.
• Compact & Durable Design: Built for demanding construction and installation environments.
• CE & UKCA Certified: Manufactured according to international safety and quality standards.

Unit LM573LD-II Laser Level Green - Technical Specifications

• Model: LM573LD-II
• Product Type: 3D Green Laser Level
• Laser Type: Osram Green LD Laser
• Laser Color: Green
• Laser Wavelength: 520 nm
• Laser Projection: 12 Lines (3D)
• Working Range: Up to 40 m
• Accuracy: ±3 mm / 10 m
• Self-Leveling Range: ±3°
• Leveling Time: < 3 seconds
• Operating Modes: Self-leveling mode / Manual mode
• Outdoor Mode: Pulse Mode Supported
• Remote Control: Included
• Battery Type: 3.7V Li-ion Battery
• Battery Capacity: 5200 mAh
• Operating Time: Up to 6 hours
• Charging Port: USB Type-C
• Mounting Thread: 1/4"
• Net Weight: 694 g
• Dimensions: 119 × 89 × 138 mm
• Certifications: CE, UKCA
• Package Contents
  • 1 × Unit LM573LD-II Laser Level
  • 1 × Carrying Case
  • 1 × Mounting Bracket
  • 1 × USB Type-C Charging Cable
  • 1 × Remote Control
