| Brand | Kristal |
| Length | 900 mm |
| Weight | 35,50 kg |
| Brand: Kristal |
| Length: 900 mm |
| Weight: 35,50 kg |

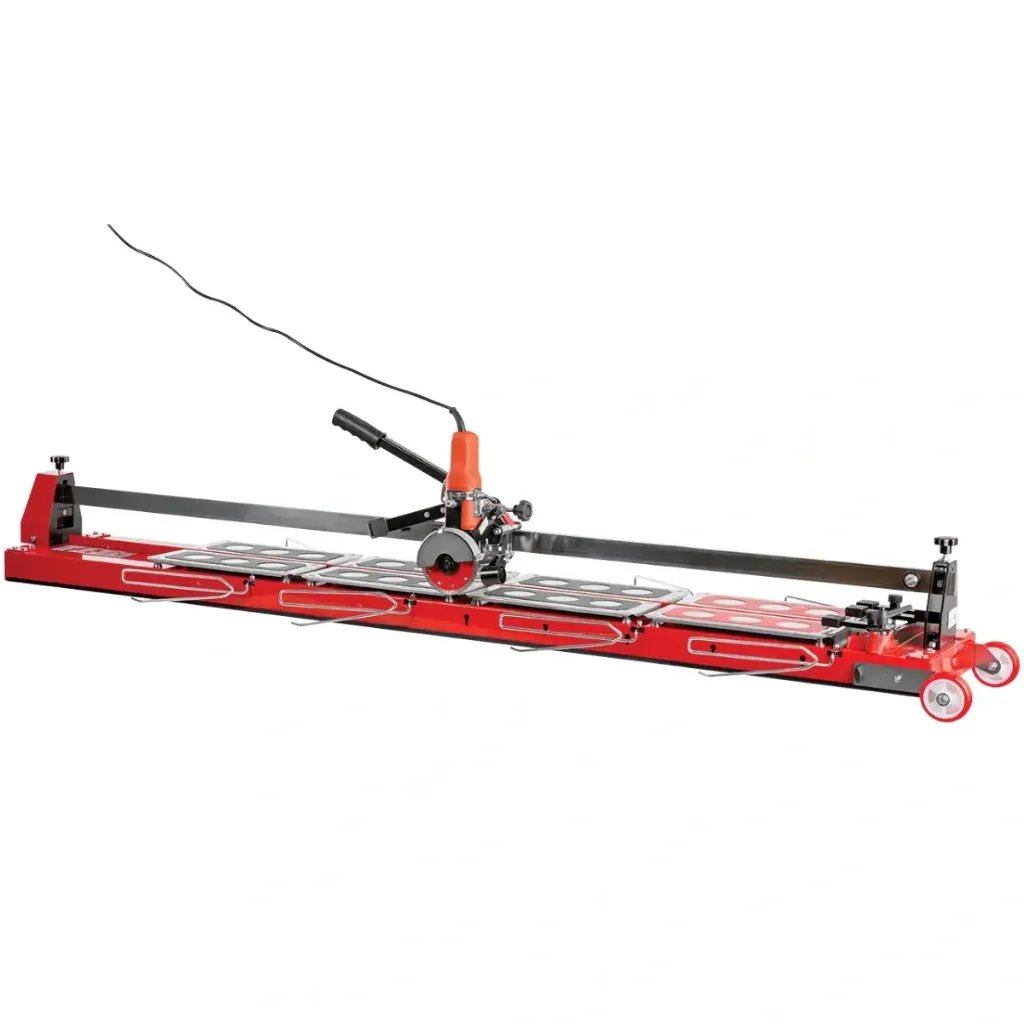

Kristal Herkul Manual Tile Cutter 935mm with Motor and Laser is a professional tile cutting machine designed for precise and efficient cutting of ceramic and porcelain tiles, including tiles with rough or textured surfaces. Developed to overcome the limitations of traditional manual tile cutters, this model combines a powerful motorized cutting system with a precision laser guide for improved accuracy.
The machine is equipped with a 750 W high-speed motor and Ø115 mm turbo diamond blade, enabling smooth and accurate cuts even on difficult tile surfaces. The cutting depth of the blade can be quickly adjusted by rotating the control handle, allowing users to adapt the machine to different tile thicknesses.
A laser guidance system projects a clear cutting line on the tile surface, allowing the user to see exactly where the tile will be cut without drawing a guide line. The laser direction can be adjusted via the screws on the laser module, and the module operates with two AAA batteries for convenient use. This feature significantly improves cutting precision and speed during installation work.
For improved breaking performance, the machine includes a round-section steel bar positioned at the center, which allows tiles to break more easily and cleanly. The tile rests against a specially designed adjustable angle guide that enables precise diagonal and angled cuts.
The bearing-supported carriage system, consisting of 13 sealed ball bearings, moves smoothly along a 40×15 mm steel rail, ensuring stable, vibration-free cutting with minimal friction. Dual breaker tips with plastic coating protect the tile surface and ensure consistent breaking results.
Designed specifically for professional tile installers, the Kristal Herkul Motorized Laser Tile Cutter features a durable steel construction, side support wires for tile stability, and spring-mounted tables that help tiles break more easily.
Additionally, the tile holding mechanism can be removed and replaced with a rotating miter guide, allowing the machine to also function as a manual tile cutter, increasing its versatility on job sites.
With its combination of motorized cutting power, laser precision, and heavy-duty construction, the Kristal Herkul Motorized Laser Tile Cutter provides reliable performance for professional ceramic tile installation.
